PRODUB PERFORMANCE is a small machine workshop that has been producing specialist components for performance engines since 1984. Neville Naismith has focused on VW engine components for applications such as Formula Vee and other classes of racing, drag-volkswagons, hillclimb, performance street cars, for engines being restored to original condition and for show cars.

Other components such as crankshafts, conrods, flywheels, pulleys can be made to order or modified as required for Chrysler, Ford, Holden and Chev.

Services Available in our Automotive Machine Shop

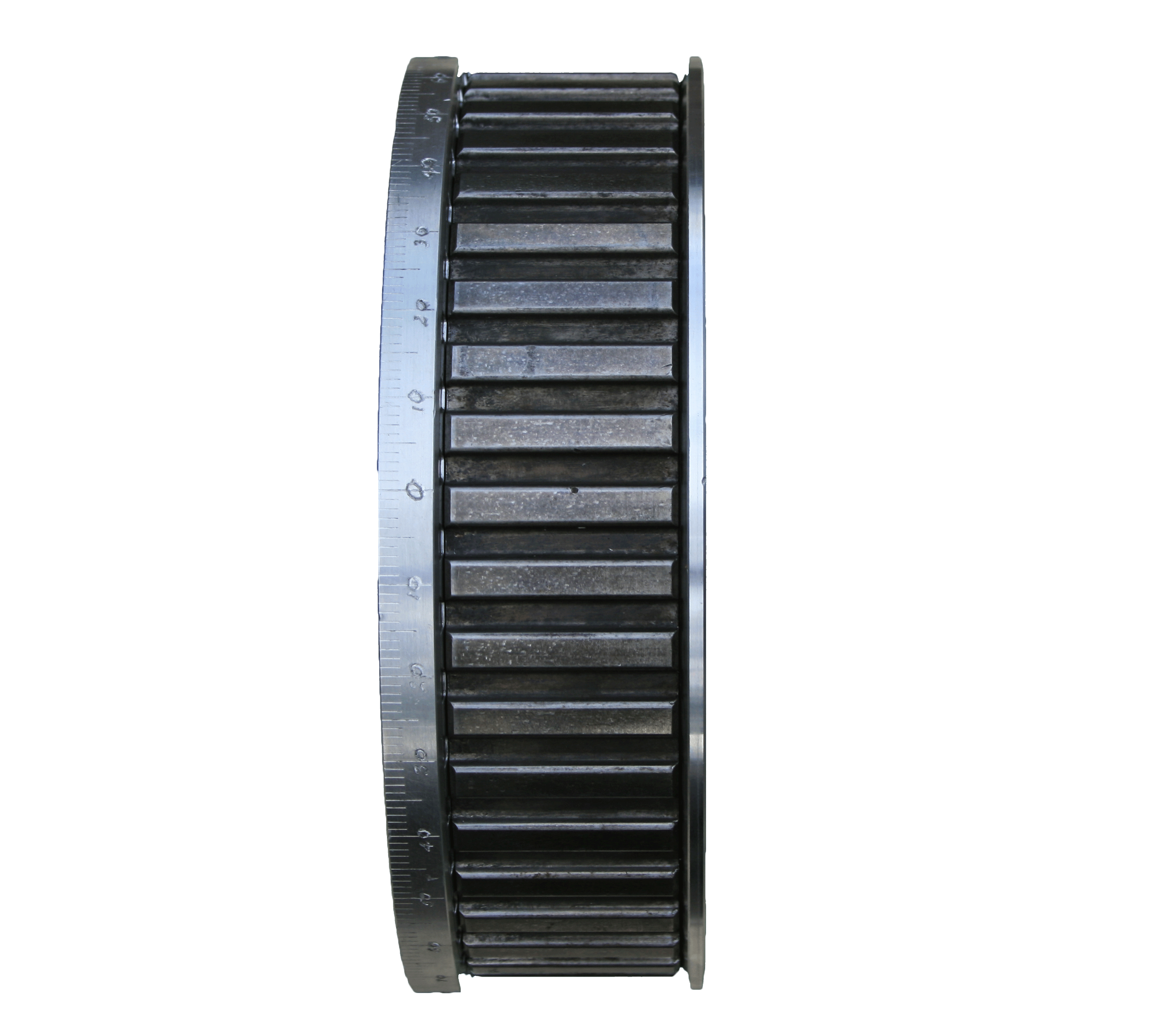

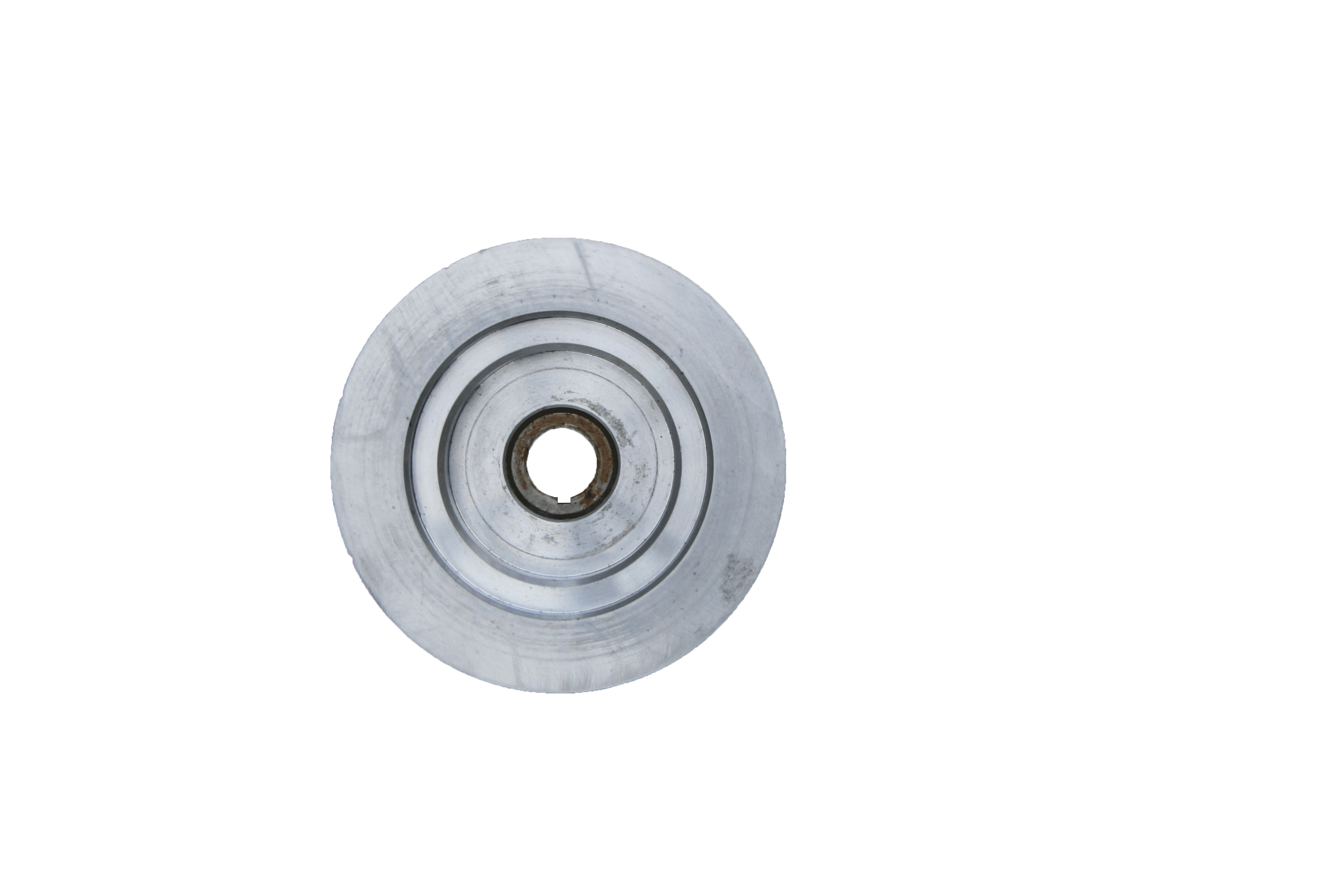

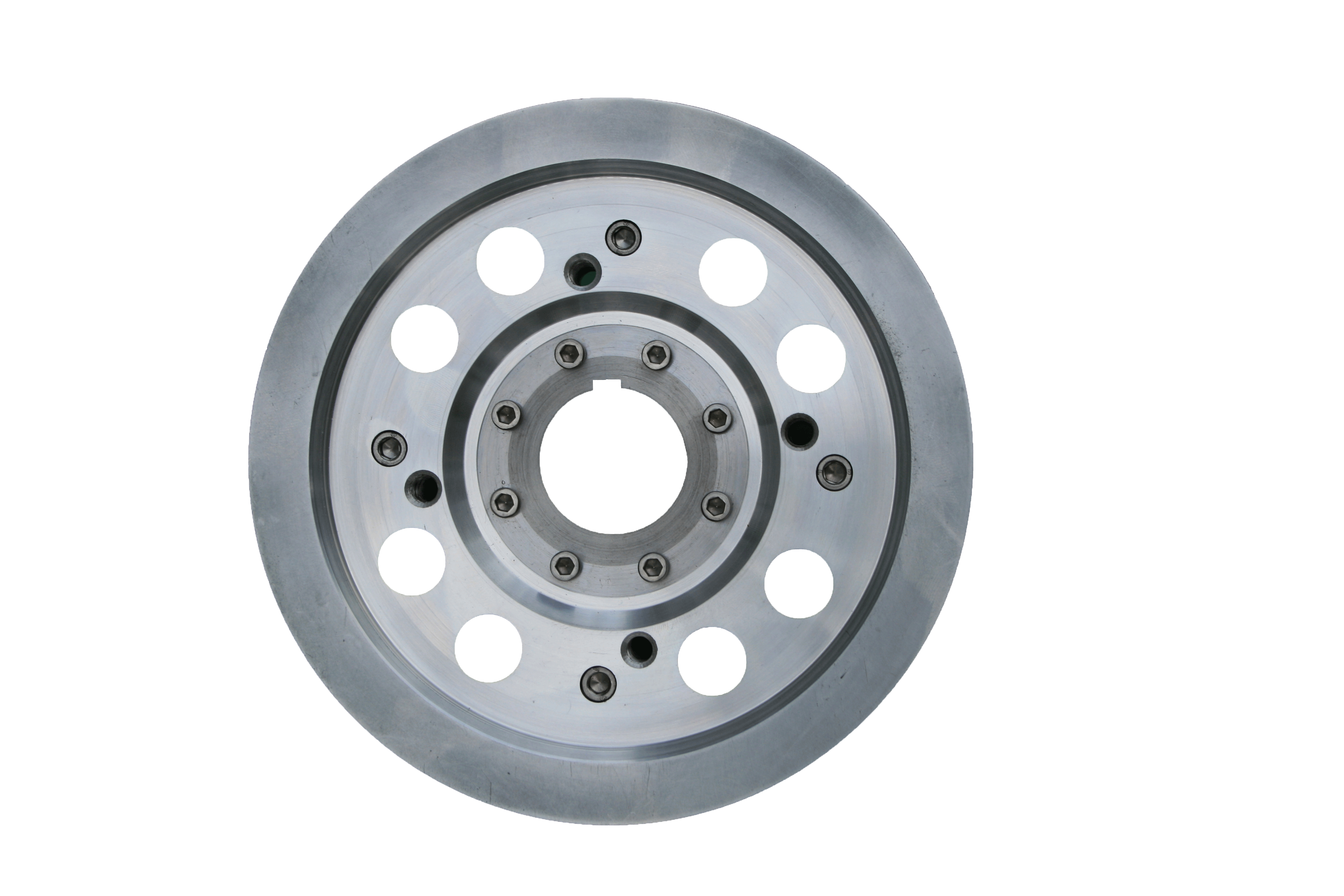

Manufactures of front pulleys:

big, small, thick, thin, steel or aluminium
Flywheel manufacturing and alterations

Counterweighted and Stroked Crankshafts for:

~ Engine capacity increase
~ Performance
~ Racing

Conrods:

~ Standard
~ Modified
~ Performance
~ Racing

Crankshaft Repairs:

~ Dowels
~ Keyways
~ Threads
~ Regrinding of VW Type 1, 2 and 3

VW Cases:

~ Repairs
~ Alterations
~ Modifications
~ Welding
~ Line boring
~ Unbrako bolt conversions
~ Machining for big barrel kits,
case savers and surfacing operations
~ Screw in oil gallery plug conversion
~ Oil gallery hole enlargements

Shotpeening

Lathe Work

Milling Work

Grinding

Welding:

~ Tig
~ Mig
~ Arc

Sandblasting of small components

VW Engine Building:

No long or short motors. These engines are finished units; they have been started, run, tuned and had their first oil change.

Engine types being built:

~ Modified Replacement
~ Performance
~ Racing

Conrods

Standard Replacement Conrods:

~ Replace small end bush and pin bore to new size.
~ Redrill oiling holes
~ Resize (strip and machine both halves)
~ Align and straighten

Conrod centre to centre distance held within 0.003”

Weight Reduction or Lightening:

~ Reciprocating weight
~ Rotating weight

~ Big End width reduction
~ Small end width reduction

Shotpeening:

~ Deflashing of side beams
~ Polishing of side beams

Conrod Bolts:

~ Replacement
~ Enlargement

Reworked stroker conrods available

Reworked standard replacement conrods also available in lots of 20

Conrod Modifications:

~ Altering centre to centre length
~ Changing gudgeon pin diameter
~ Fitting bushes into small ends

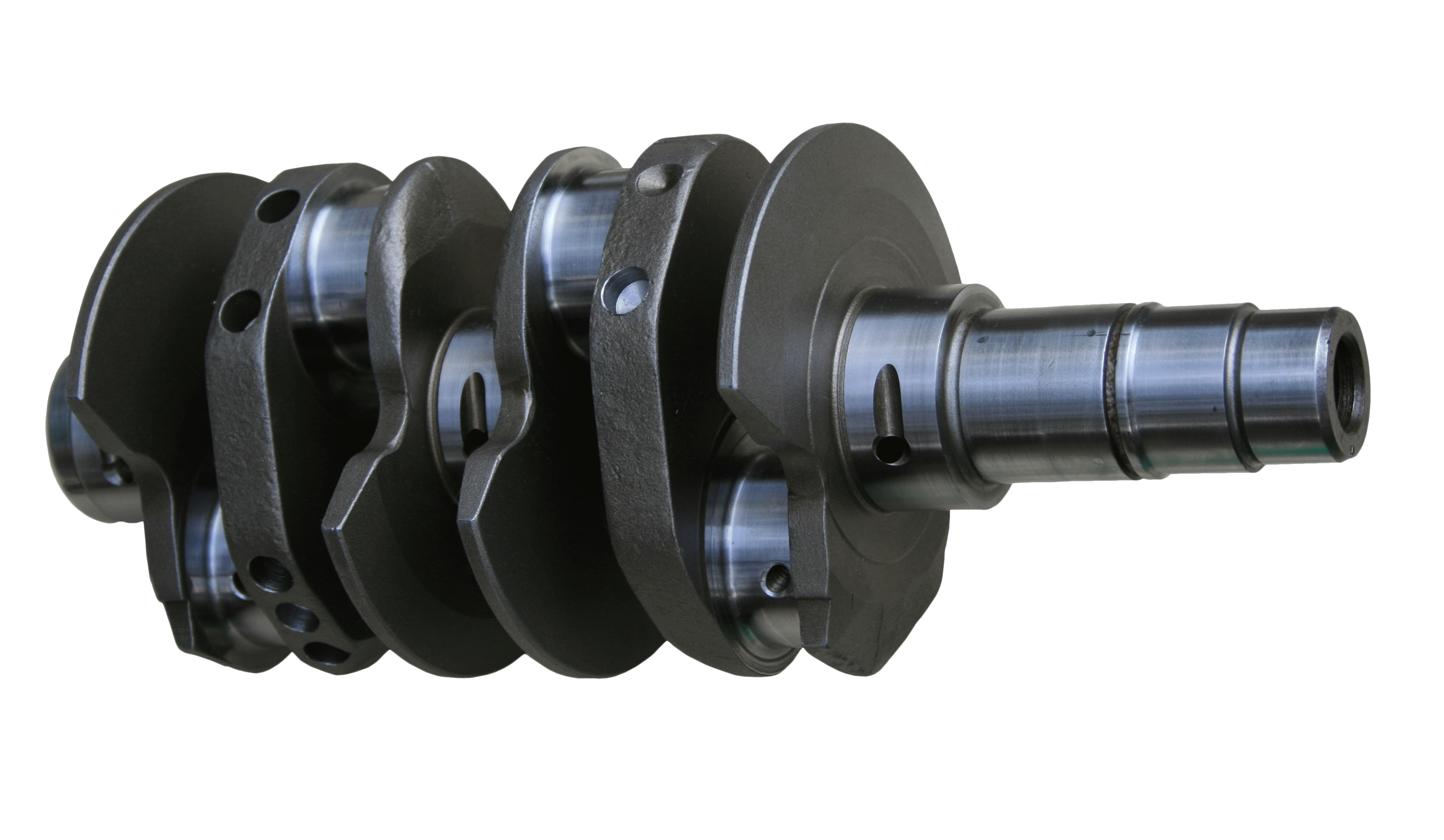

Crankshafts

Volkswagon:

Counterweighted and stroked crankshafts
69mm stroke standard replacement up to 75.5mm stroke
VW conrods on standard replacement crankshafts
Larger strokes available

Machining of damaged face on crankshaft caused by flywheel coming loose
Drilling of damaged dowels

Machining of Flywheel Contact Faces:

~ Flywheel to crankshaft
~ Gland nut to flywheel

PRO DUB also makes a variety of counterweighted and stroked crankshafts for other engine types:

~ 6 cylinder Holden
~ V8: Ford, Holden, Chev and Chrysler

VW Cases

Crack Testing

Magnesium Welding:

~ General cracks
~ Solid weld behind No. 3 cylinder

M8 Unbrako bolt conversion (M8 stud replacement)

M6 Unbrako bolt conversion (oil strainer and sump plug plate)

Machining down of lifter housings for increased camshaft lobe lift

Stripped-out thread repairs

Remove oil gallery plugs for cleaning

Oil Gallery Enlargement:

~ Oil pick up
~ Oil cooler

Drilling and tapping for full flow oil cooler systems

Screw in oil gallery plug conversion

Line boring of main journals

Case saver fitting

Machining case and heads for big barrel kits

Surfacing barrel seating areas

Spot facing/ remachining the areas where the case securing the washers and nuts make contact with the case

Flywheels

Clutch plate contact surface is machined to remove:

~ Hard spots
~ Heat cracks
~ Heat affected areas

Machining this contact surface also produced a clean flat face for a new clutch to run on
Machining of the clutch plate contact surface, both single and stepped types

Flywheel lightening

Flywheel alterations

Flywheel manufacturing to your specifications

Ring gear removal and replacements

Mounting of pressure plate to flywheel

Full dimensional flywheel true-up:

~ All surfaces and diameters machined true to flywheel axis
~ This operation can also be done using the crankshaft as a master

The flywheel is set up on the crankshaft, then all flywheel surfaces and diameters are remachined
true to the crankshaft axis

Convert VW flywheels with 180mm diameter clutches out to accommodate 200mm diameter clutches

Convert  VW 6 volt flywheels to 12 volt and 12 volt flywheels to 6 volt.

Ring:

0409 026 003
or to make an appointment
at East Warburton or
Welshpool, South Gippsland

Mail:

P.O. Box 326
Warburton, 3799
Victoria, Australia

or e-Mail us at:

enquiries@produb.com.au

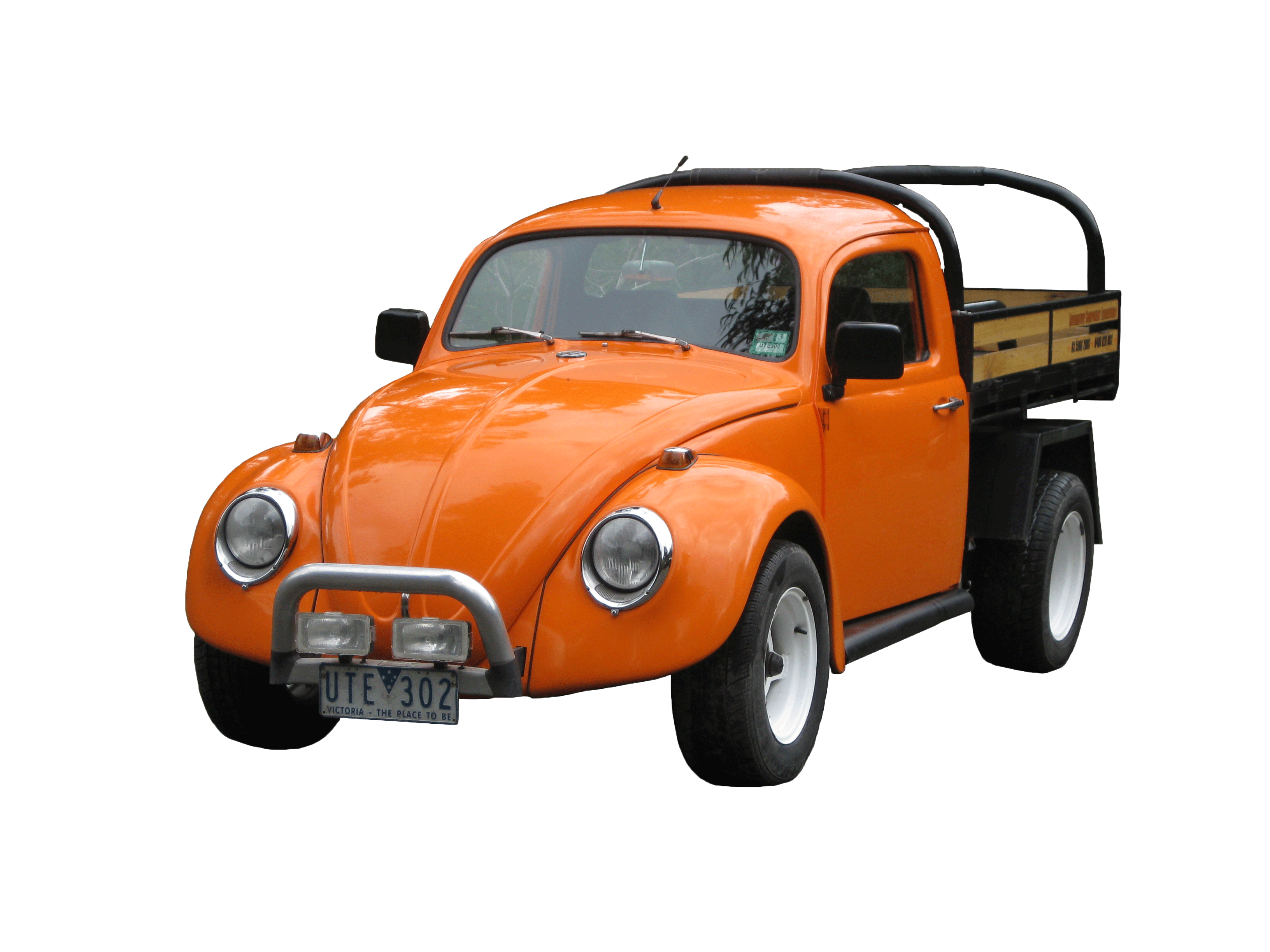

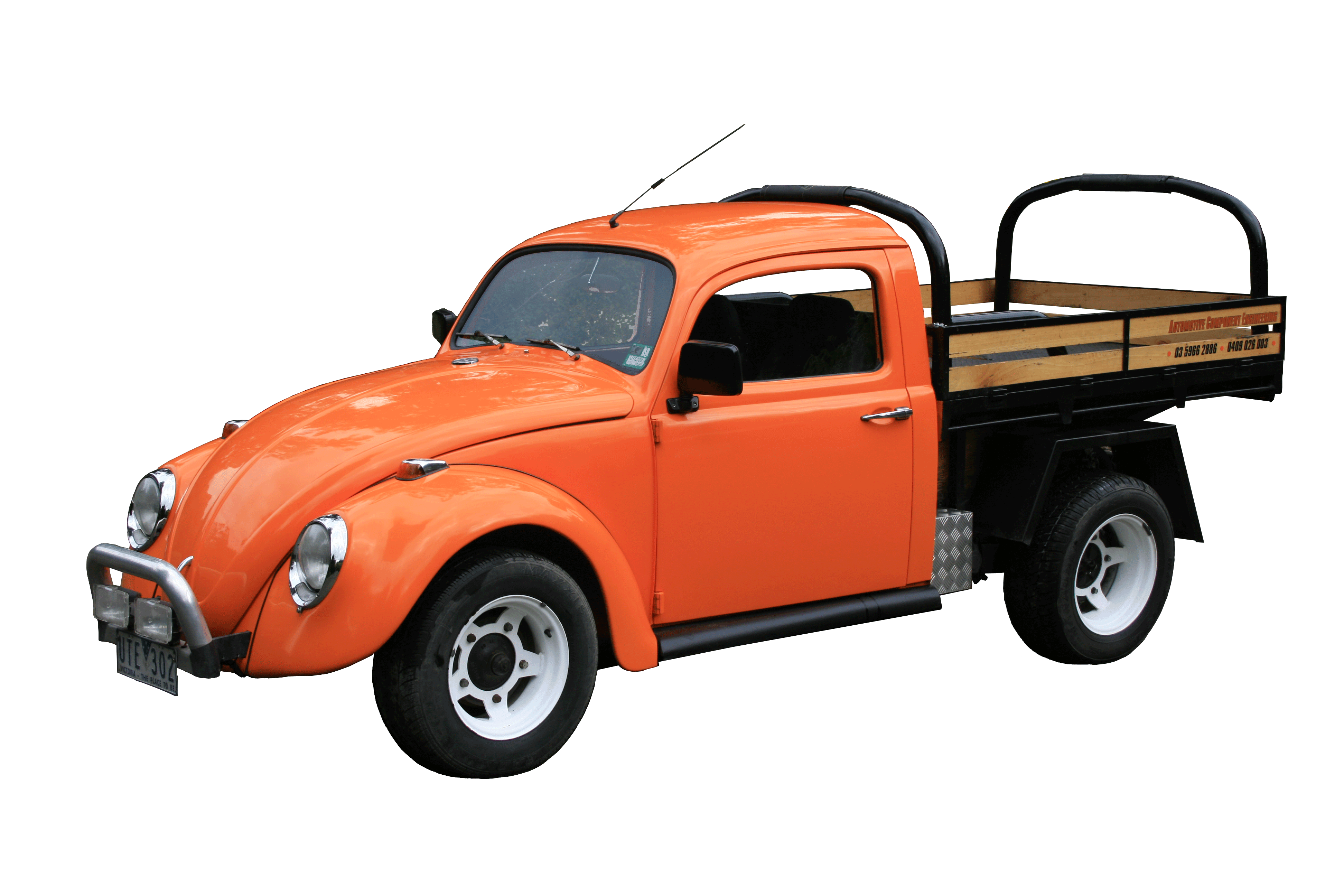

Gallery of some of the work completed at Produb Performance. Right Click on any of the images and use the "Save As" function of your browser to save them to your computer.
